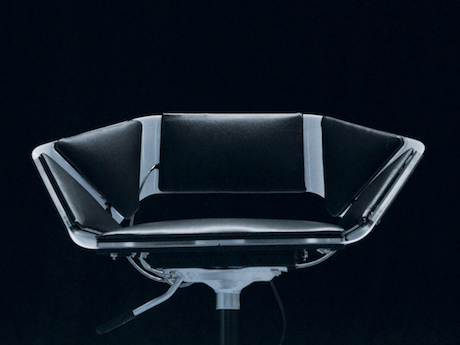

BodyPods are multisensory seats that allow humans to perceive each other’s presence by remotely exchanging their bodyprints through the internet. BodyPods inquire the capacity of architecture to mediate human presence through digital information.

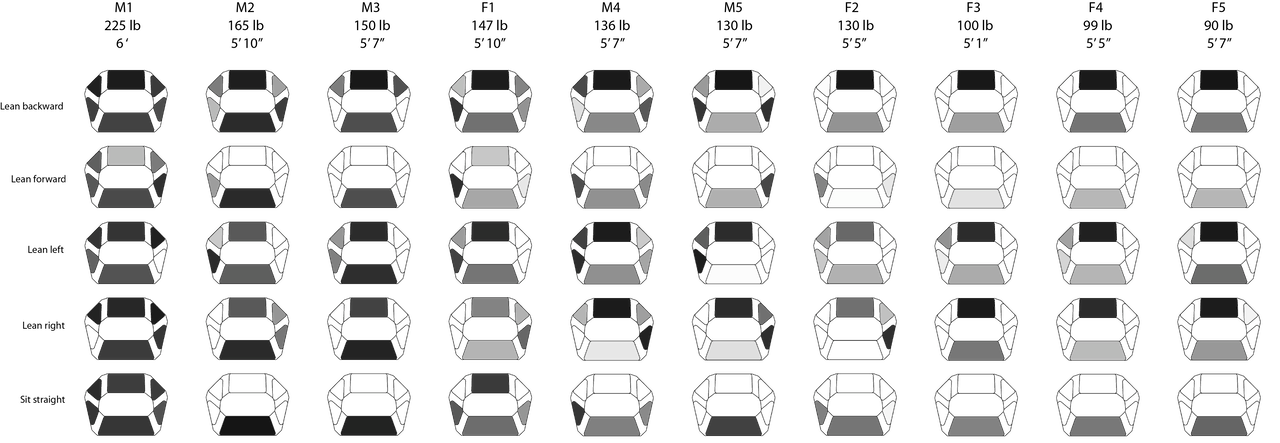

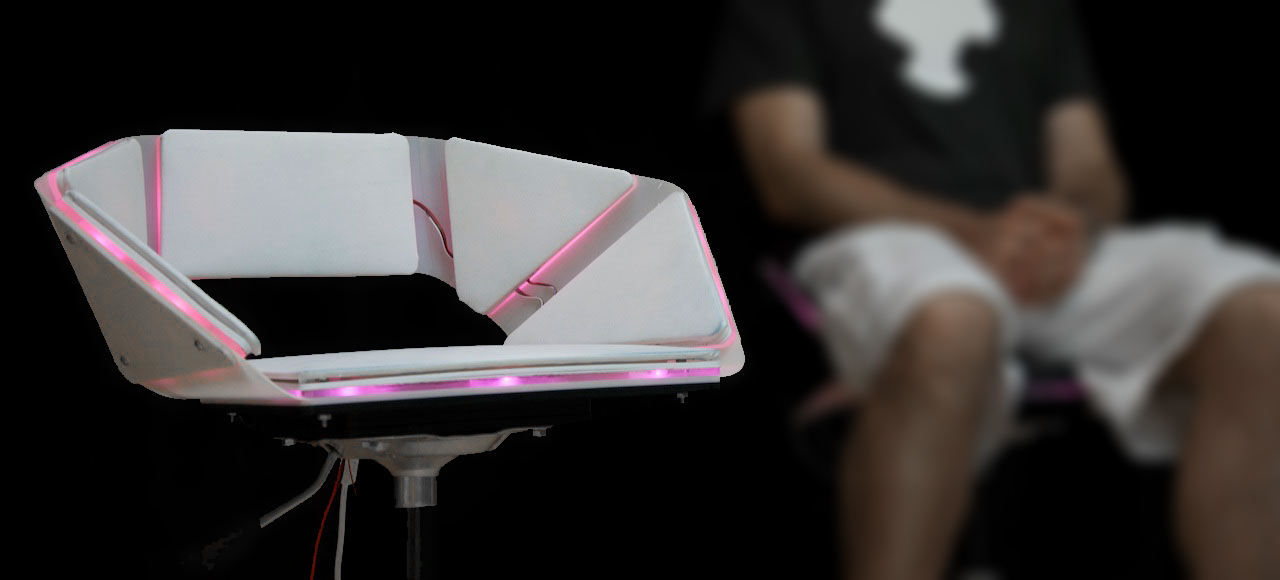

Analogous to a fingerprint, a bodyprint manifests a person’s sitting posture as a distribution of their body pressure on the seat. When a person sits on one BodyPod, their bodyprint is visuallly manifested on the surface of the other BodyPod. If the person leaves, their bodyprint fades away with time.

Design

Prior works in the field retrofitted furniture with technology that were never designed for, resulting in technological complexity (often hundreds of sensors), awkward functionality, poor usability, and bad design aesthetics. BodyPods detect 8 sitting postures using only 6 pressure sensors through a novel design that adjust its shape to body anatomy during posture transitions.
The geometry is tailored to the anatomy of a user, allowing sensors to be placed close to body parts that are used as reference points. This minimized the number of required sensors and simplified their signal analysis. The design is structurally self-supporting: as the back leans, the sides gently squeeze the torso preventing the back from leaning further. A parametric CAD model was used for kinematic analysis and customization.

Material Compliance

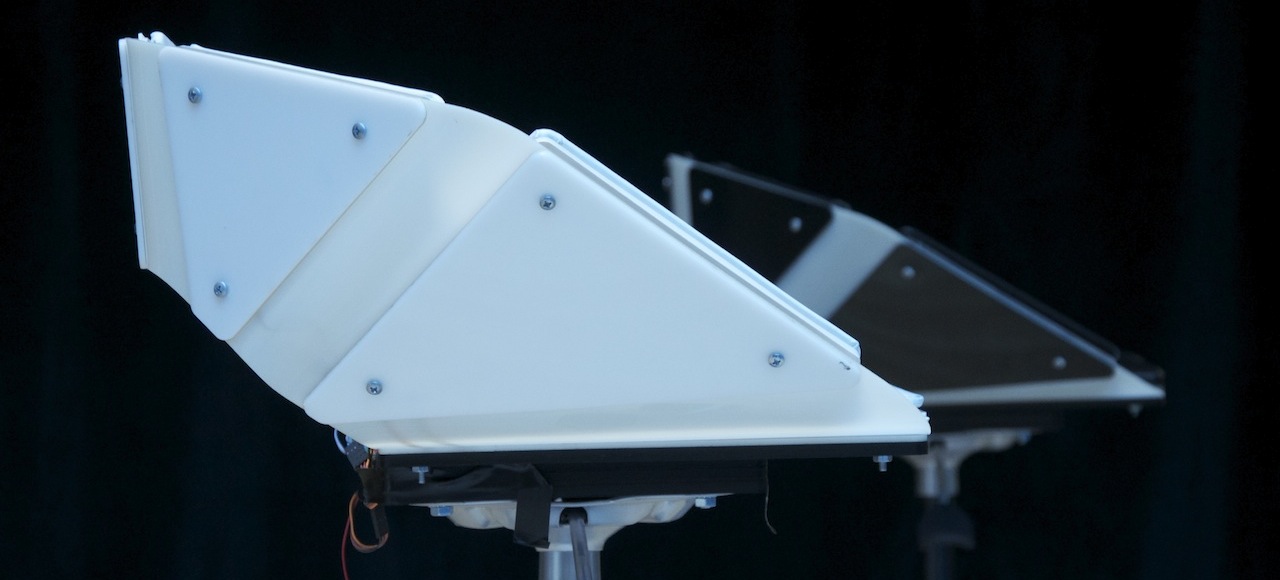

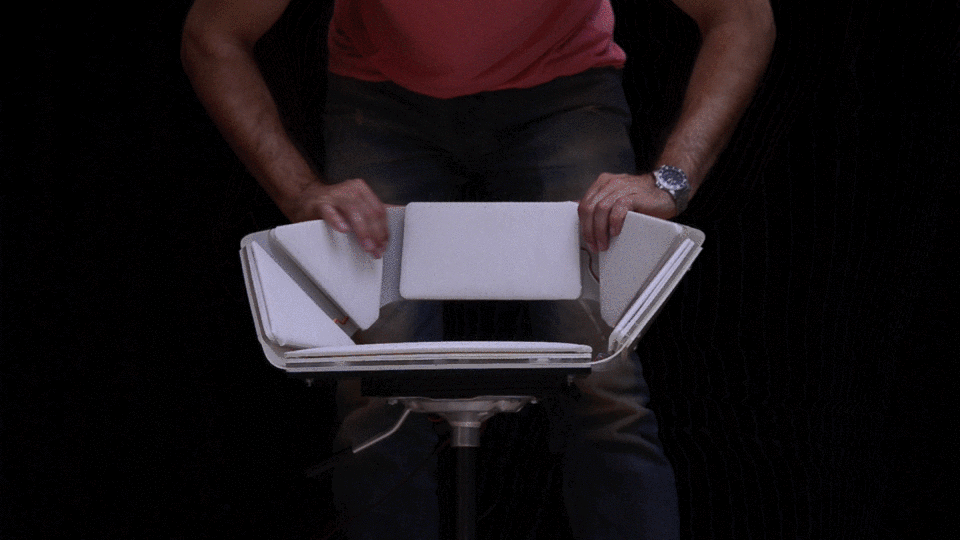

Each BodyPod is made of a flexible substrate (thermoformed Nylon) with 6 rigid panels (Delrin) mounted on it. The synergy of the two materials allows the seat to flex and maintain contact with sensors during movements. BodyPods are fabricated entirely in a laser cutter and can be assembled within a day.

Fabrication, and Assembly

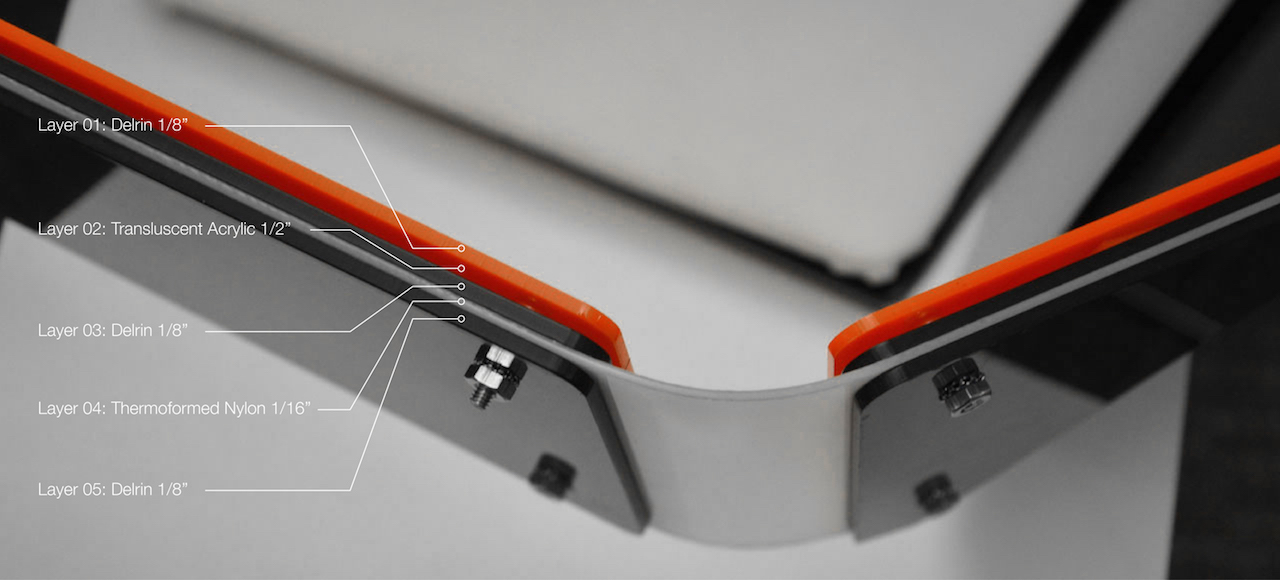

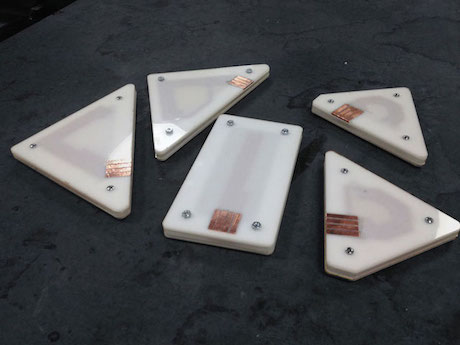

The stacked assembly of each panel consists of (outside to inside): a layer of Delrin; the Nylon substrate; a translucent layer of acrylic that houses the electronics; and a layer of Delrin upon which the FSR sensor is mounted. The 4 layers are bolted together and a cushion pad consisting of Delrin, foam, and upholstered Vinyl, is mounted on them with double-sided VHB tape, allowing both relative movement and detachability.

Hardware

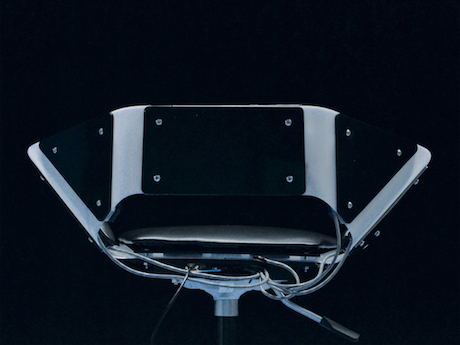

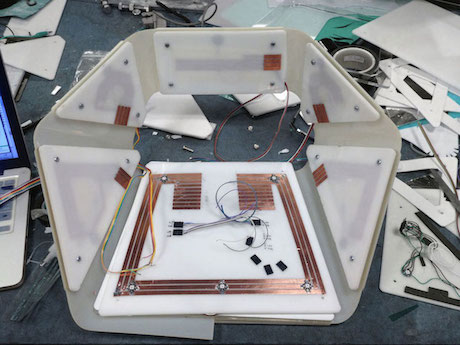

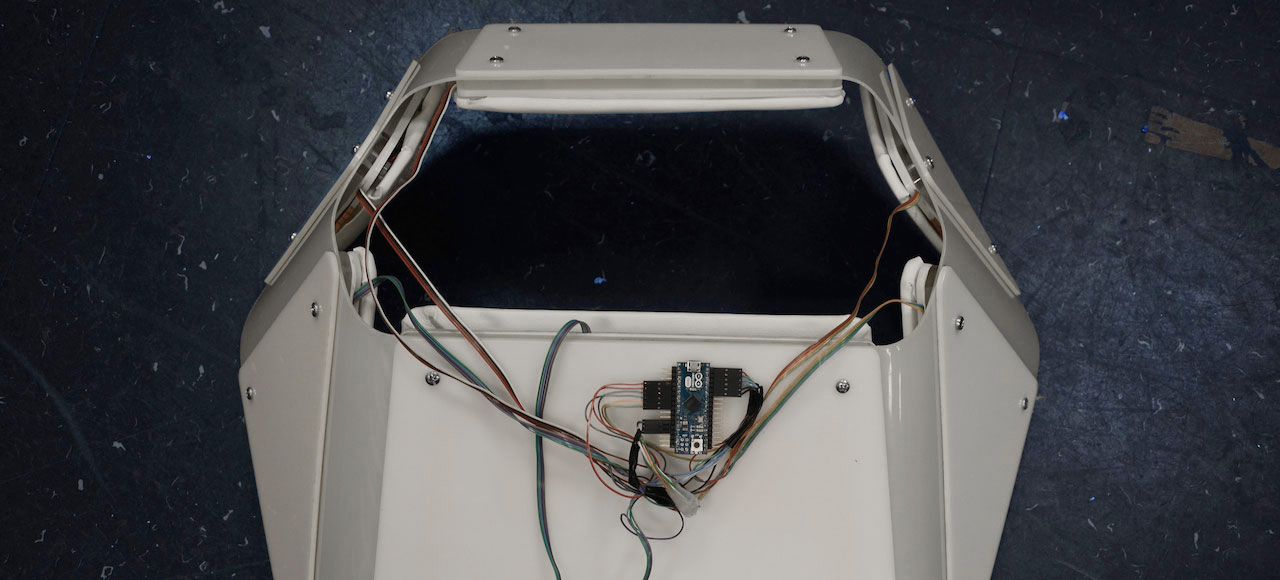

Each pad contains a pressure sensor (force sensitive resistor) and an array of RGB LED lights. The pads connect to a microcontroller, which sends the data to a server. Paired BodyPods share data through the internet by mapping the sensors of one seat to the corresponding light-emitting pads of the other seat.

Interaction and Communication

BodyPods respond smoothly to body movements. Results from a 10-person user study showed that BodyPods recognize 8 sitting postures and 2 torso rotations. Potential application areas include tangible or bodily gestural interfaces, musical instruments, game controllers, medical devices, and social experiments.

Applications

Potential application areas include tangible or bodily gestural interfaces, musical instruments, game controllers, medical devices, and more. Future areas of research include social experiments as well as the development of learning algorithms for training seats to recognize postures from bodyprint data.
